How it works
Opens and closes with a 90-degree rotation
It controls the flow rate by rotating the disc, and is quick and simple to operate.
BUTTERFLY VALVE
BUTTERFLY VALVE
CONCENTRIC BUTTERFLY VALVE
( RUBBER & PTFE SEAT )
( RUBBER & PTFE SEAT )
Structural features
Simple design makes maintenance easy.
Can be installed in tight spaces.
Lightweight: Lighter than other valves such as gate, globe, and ball valves, providing better workability.
Can be installed in tight spaces.
Lightweight: Lighter than other valves such as gate, globe, and ball valves, providing better workability.
Product Information
Key Features ( RUBBER & PTFE SEAT )
Rubber sheet (EPDM, NBR, VITON, etc.) seals the valve disc to ensure minimal leakage
(Bubble tight sealing).
(Bubble tight sealing).
Superior corrosion resistance and sealing properties compared to metal sheets.
Corrosion resistance is improved because the fluid does not come into direct contact with the valve body, but rather comes into contact with the rubber seat.
No separate gasket is required when connecting pipes.
( The RUBBER SEAT acts as a gasket. )
( The RUBBER SEAT acts as a gasket. )
Operating pressure and temperature
Item
Explanation
RATING
JIS B 2210 ( 5K, 10K, 16K)
ASME B 16.5 & 16.47 ( CLASS 150 )
EN 1092-1 ( PN06, PN10, PN16) AWWA C 207 등
However, for PTFE SEAT: JIS 5K, 10K & PN 06, 10 & CLASS 150 (less than 10 Bar)
ASME B 16.5 & 16.47 ( CLASS 150 )
EN 1092-1 ( PN06, PN10, PN16) AWWA C 207 등
However, for PTFE SEAT: JIS 5K, 10K & PN 06, 10 & CLASS 150 (less than 10 Bar)
Temperature range
Approximately -50℃ ~ 110℃ (depending on the material of the SEAT)
Applicable fluid
Can be used for various fluids such as water, air, sewage, and chemicals (depending on the material of the rubber and PTFE seats)
Areas of application
Suitable for medium and low pressure systems such as chemical plants, water purification/wastewater treatment, power plants, seawater treatment, and pharmaceuticals.
Installation direction
Both vertical and horizontal possible
Actuator

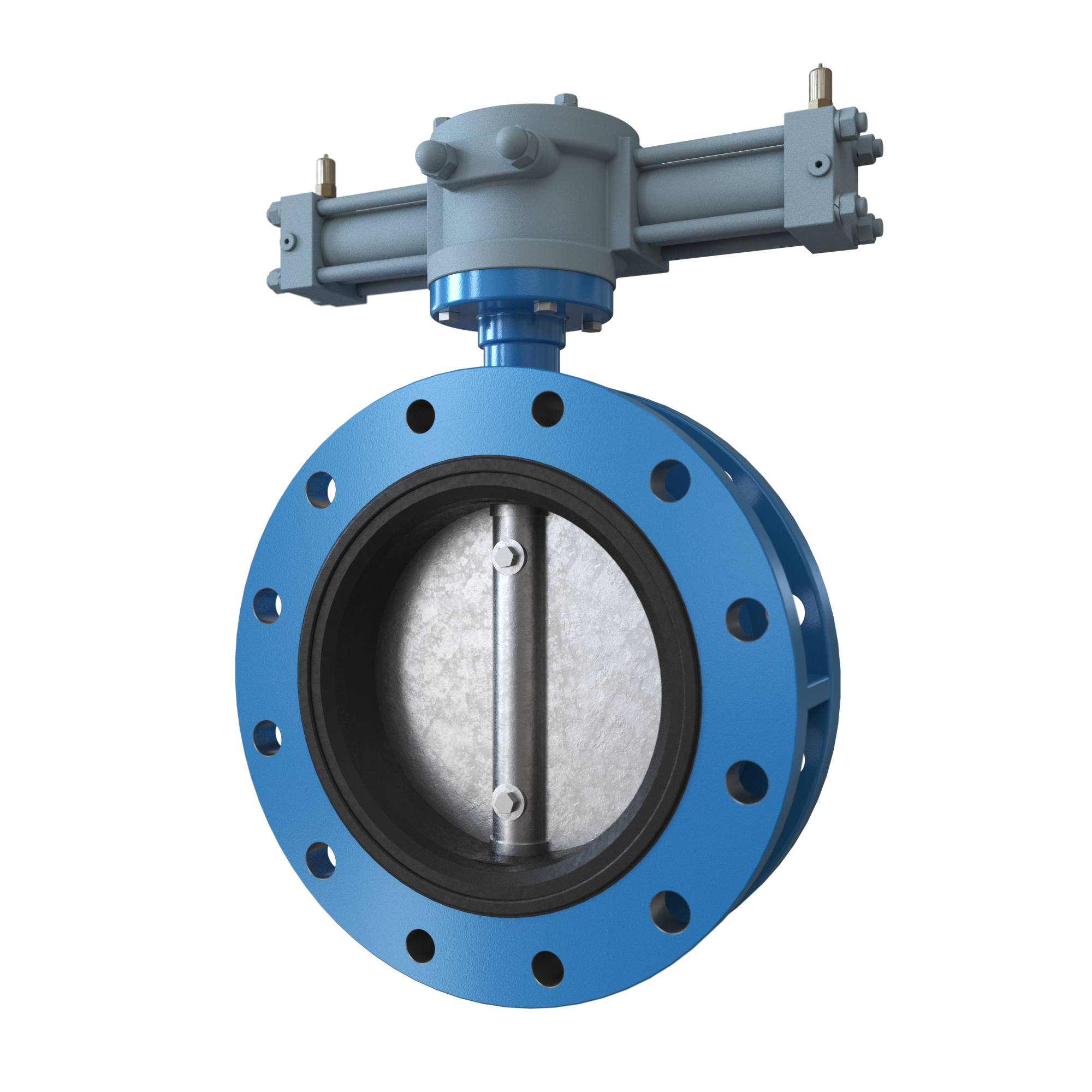

Levers, gears, or electric, pneumatic, or hydraulic actuators, etc.
Size
DN 40 ~ 2000
The temperature range of the fluid varies depending on the RUBBER & PTFE SEAT material: EPDM is approximately 80°C, NBR is approximately 70°C, VITON is approximately 110°C (based on normal operating temperature)
Connection Method

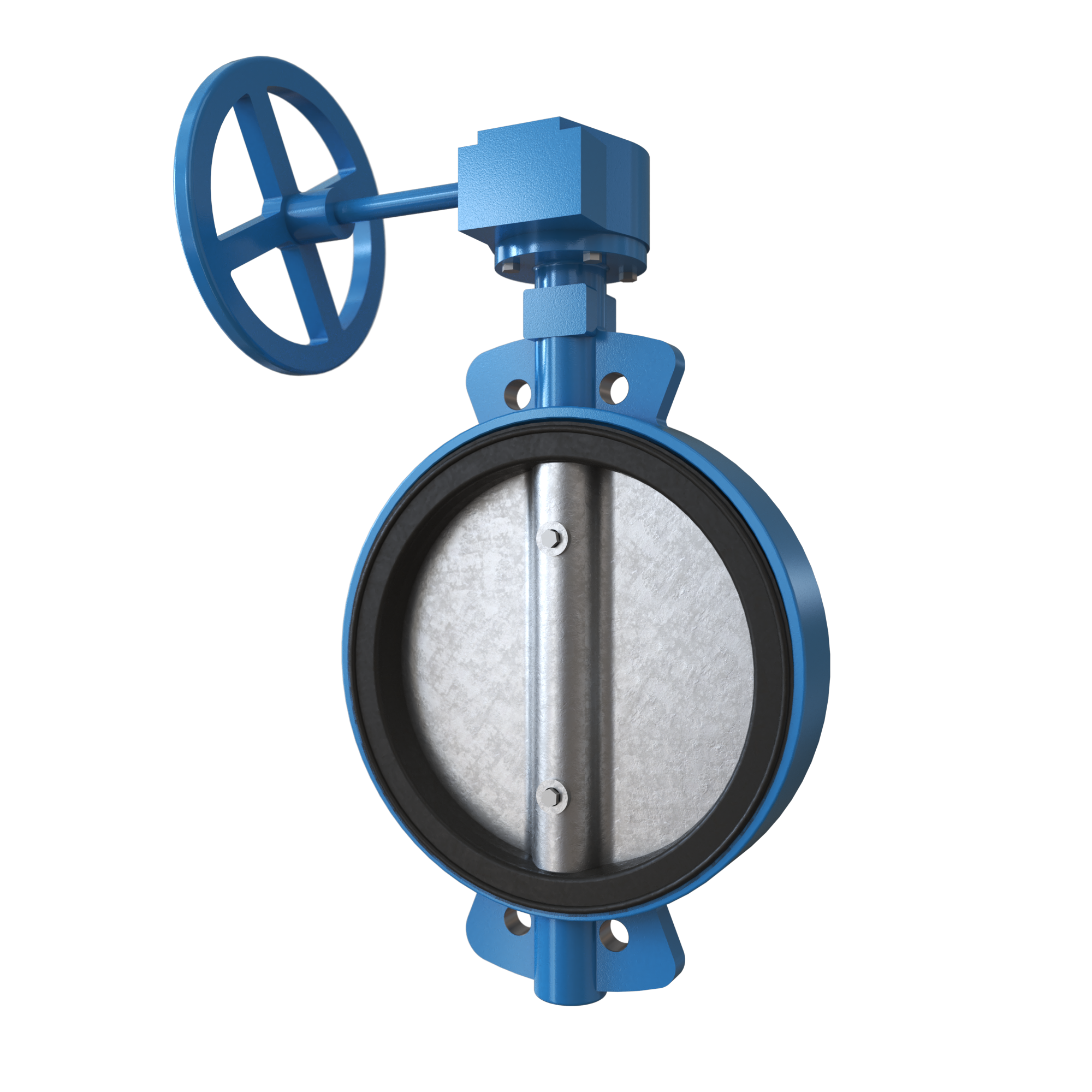

WAFER

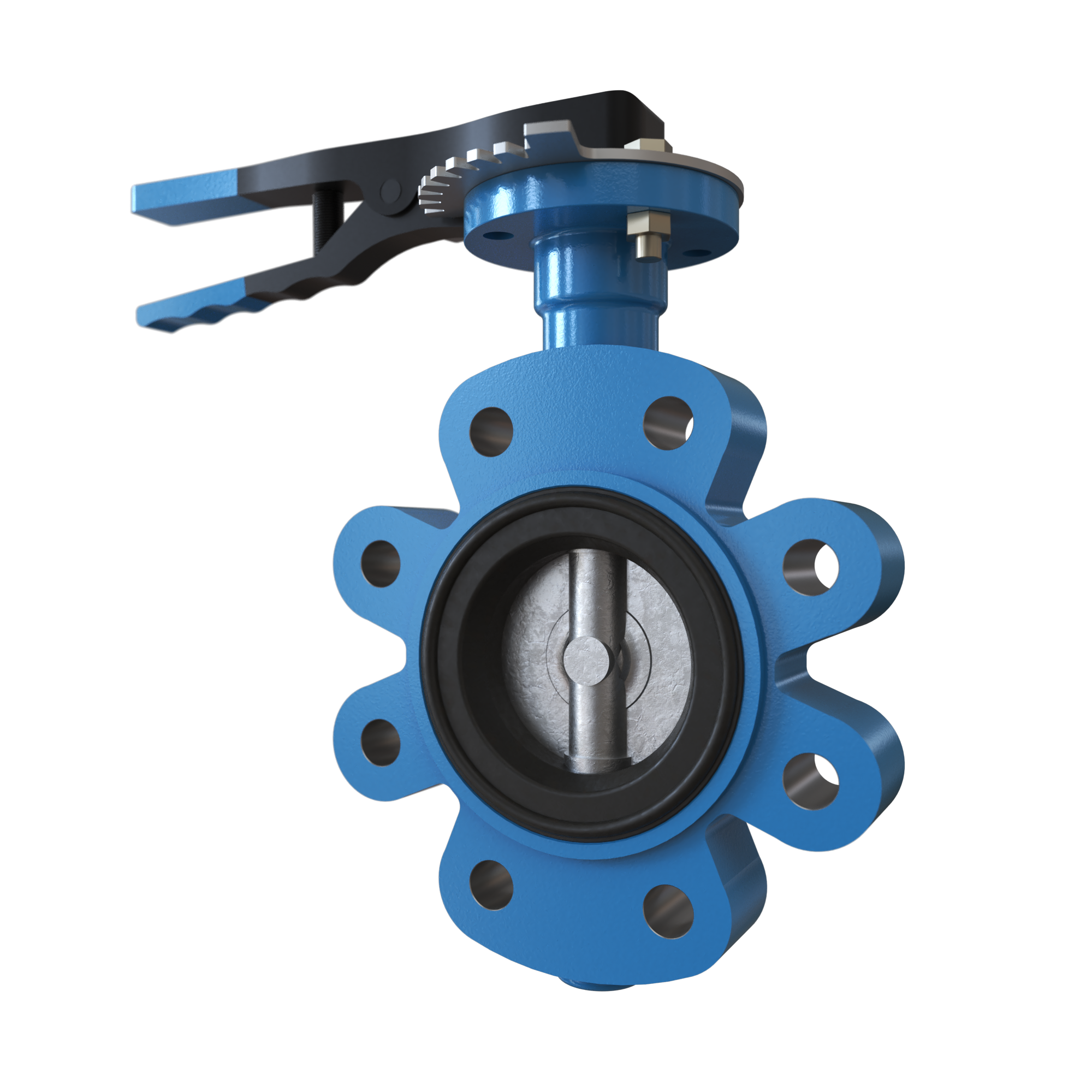

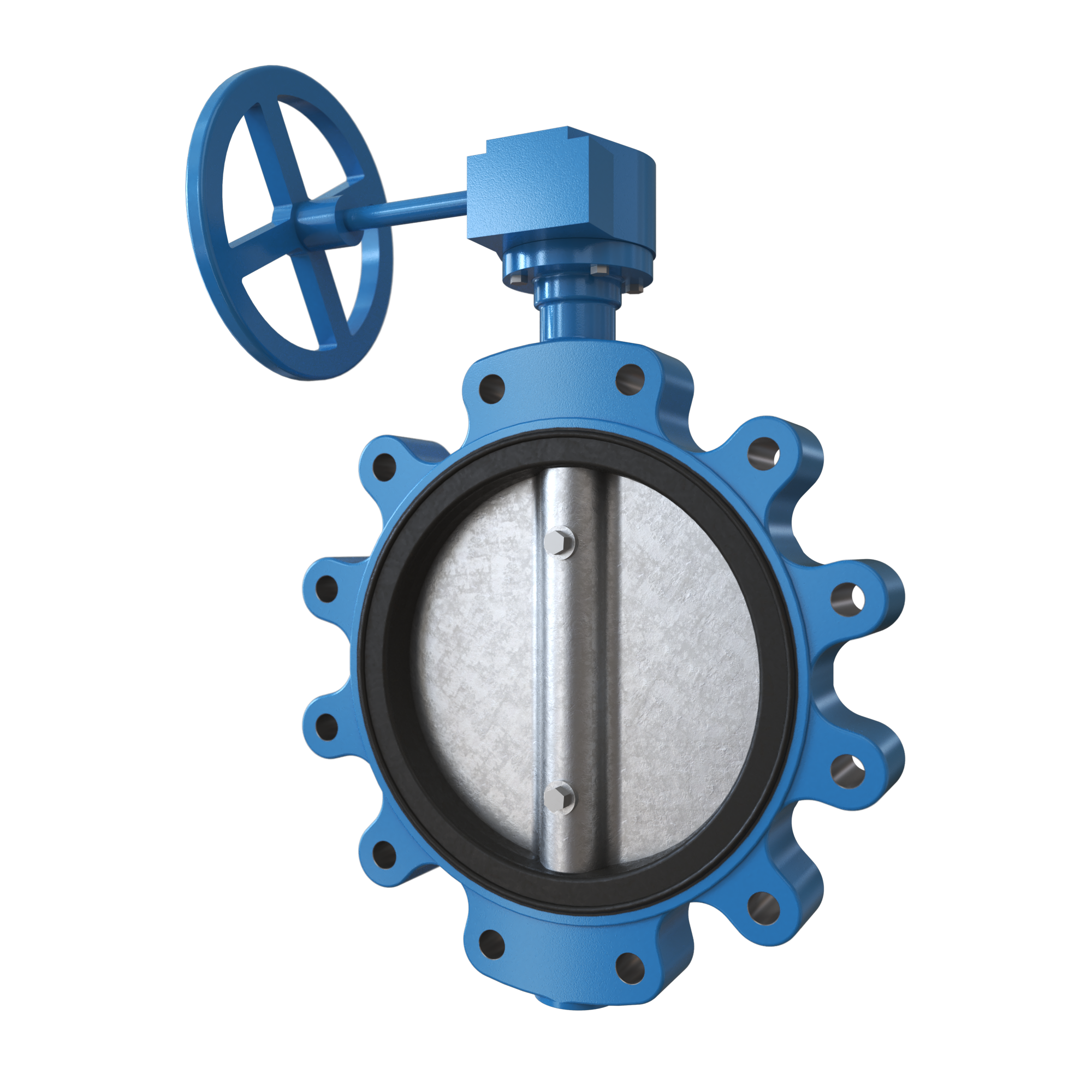

LUG

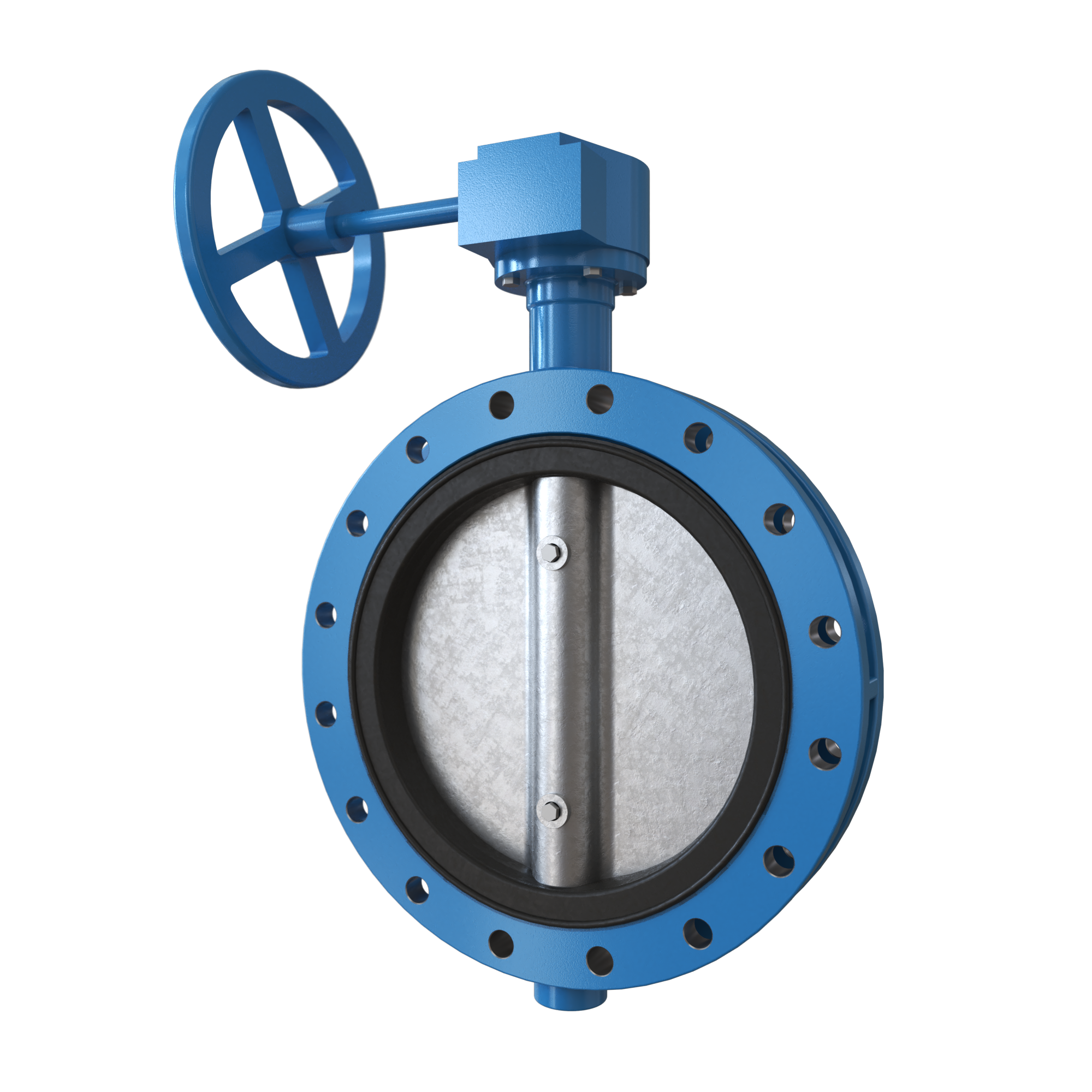

FLANGE
SEMI LUG
Pros
Low price
The fluid blocking power is certain.
Easy maintenance
Various installation positions possible (horizontal, vertical, etc.)
