DUAL CHECK VALVE
img img
DUAL CHECK VALVE
DUAL CHECK VALVE
( Non-Return Valve )
Structural features

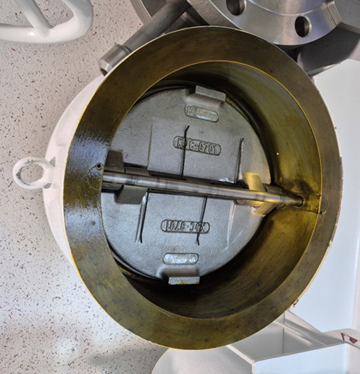

Two plate structure (Dual Plate)
 There are two crescent-shaped plates inside the valve that open when the flow is flowing and quickly close with the force of a spring when the flow is reversed.
Fast response speed and low water hammer generation.
Compact design
 Shorter face-to-face distance than conventional swing check valves. Space-saving, suitable for tight installation spaces.
Lightweight
 It is easy to handle because the structure is simple and the materials are minimal, making it light.
Easy to install and maintain.
Low pressure loss
 Both plates open easily in the direction of fluid flow, and pressure loss is small depending on the flow rate.
Water Hammer Reduction
 Reduces water hammer with quick plate closing and spring operation. Effective in protecting pipes and equipment when the pump stops (shock reduction)
Product Information
Key Features
Item
Explanation
RATING
JIS B 2210 ( 5K, 10K, 16K, 20K),
ASME B 16.5 & 16.47 ( CLASS 150, 300 ),
EN 1092-1 ( PN06, PN10, PN16) AWWA C 207 etc.
SEAT type
RUBBER SEAT
( EPDM, NBR, VITON etc) PTFE SEAT
Temperature range
Varies depending on the seat material
(EX. EPDM is about 90°C, NBR is about 70°C, VITON is about 110°C (based on constant use temperature))
Pros
Vertical/horizontal installation possible
Suitable for flexible piping design as it can be installed in various directions
Areas of use
industrial piping systems
Heating, Ventilation, and Air Conditioning (HVAC) Systems
Pump Discharge Lines
Water Treatment Facilities
Power Plants, Petrochemical Plants, etc.
